Melt Shop

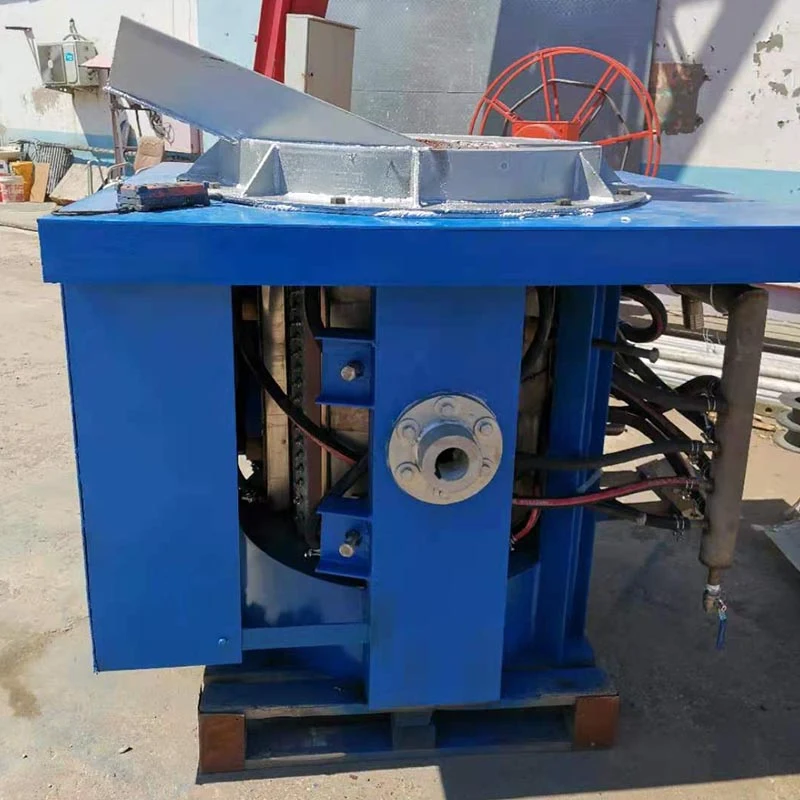

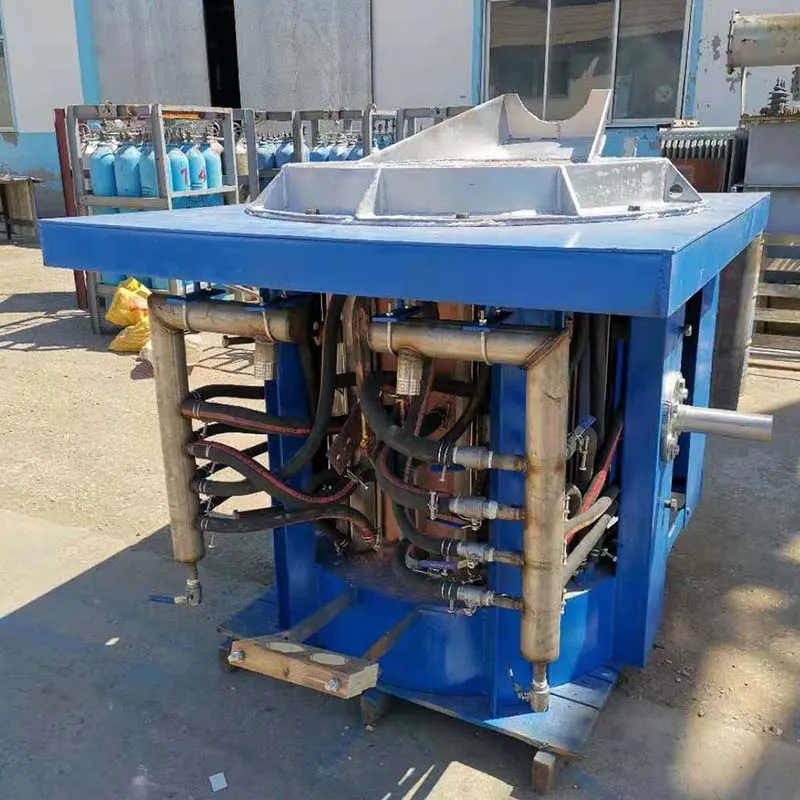

Inductotherm Induction Furnace

We can design and manufacture the inductothern induction furnace according to the client’s required capacity, working hours, power supply, raw materials, and other related parameters. It can also be matched for users who already have an inductothern induction furnace.

Fast heating, high production efficiency, less oxidation and decarbonization, saving materials and costs, and prolonging the service life of the die.
Superior working environment, improved workers’ working environment and company image, no pollution and low energy consumption.

Description

Inductotherm Induction Furnace

The inductotherm induction furnace adopts a controllable silicon static medium frequency power supply for induction heating, which is used for smelting and heat preservation of non-ferrous metals such as copper, aluminum and stainless steel. It is generally divided into aluminum shell structure and steel shell structure according to the furnace capacity. Aluminum shell structure generally adopts the tilting furnace mode with reducer as power (there are also a few hydraulic tilting furnaces), and steel shell structure generally adopts the tilting furnace mode with hydraulic power.



Service Environment and Conditions

1. Ambient temperature: 2 ℃ ~ 35 ℃;

2. The relative humidity shall not exceed 90%;

3. The altitude shall not exceed 1000m;

4. There is no conductive dust and corrosive gas around;

5. Places without explosion hazards and violent vibration;

6. The temperature of cooling water shall not be lower than 5 ℃ and not exceed 35 ℃ The outlet water temperature shall not exceed 55 ℃, the pH value shall be in the range of 6 ~ 8.5, and the hardness shall not be greater than 8 degrees (each degree is 1 liter, and the water contains 10 mg Cao);

7. The voltage fluctuation of three-phase power supply shall not be greater than 10%.



Technical Parameters

1. Power supply voltage: three-phase 380V

2. Power frequency: 50Hz

3. If voltage: 1000V

4. If frequency: 1500hz

5. Working temperature: 1600 ℃

6. The inlet pressure of cooling water: 0.15 ~ 0.2MPa



Inductotherm Induction Furnace’ features

1. The inductotherm induction furnace has fast heating speed and very little oxide scale. The medium frequency heating furnace uses the principle of electromagnetic induction, and the heat is generated by eddy current in the workpiece itself. The oxide scale is very few, especially suitable for precision forging.

2. The heating inductor of the intermediate frequency induction heating furnace is interchangeable. In the production process, the heating wool is damaged through the unique general upper and lower water quick-change joints of the intermediate frequency furnace and the new tank circuit exchange mechanism developed by the Haishan electric furnace to ensure that the exchange of the inductor is completed in a very short time.

3. According to different process requirements of users, the induction furnace is equipped with different feeding and discharging machines to form an optimized combination of equipment. The specific forms include continuous type, intermittent type, etc. Discharging forms include: tipping type, straight tipping type, etc.

4. The whole medium frequency induction heating furnace system of the medium frequency furnace can be equipped with an automatic feeder, discharge machine, discharge separator and closed-circuit water circulation system according to the requirements of users.

5. The whole medium frequency induction heating furnace system of the medium frequency furnace has multiple protections, including the water temperature and water pressure alarm of the cooling water circuit, and the upper and lower limit alarm of the temperature is set.

6. The stability of the whole medium frequency induction heating furnace system. Large bars are fed continuously to reduce the impact on the medium-frequency power supply. And it forms a temperature closed-loop control with the power supply to ensure that the head and tail of the return heating temperature are consistent and the core surface temperature difference is small.



Customized Inductotherm Induction Furnace



We can design and manufacture the inductothern induction furnace according to the client’s required capacity, working hours, power supply, raw materials, and other related parameters. It can also be matched for users who already have an inductothern induction furnace.



Advantages

Fast heating, high production efficiency, less oxidation and decarbonization, saving materials and costs, and prolonging the service life of the die.

Superior working environment, improved workers’ working environment and company image, no pollution and low energy consumption.

Uniform heating, extremely low-temperature difference between core and meter, high-temperature control accuracy.



Service

We can provide foundation layout and layout drawings

We will send engineers to your factory to install and debug machines and provide reliable after-sales service.

Competitive price and excellent quality

Our machines are easy to operate and maintain

Less investment

Stable performance

Products can be customized according to different need

Production capacity can be adjusted according to customer requirements

Low energy consumption
