Melt Shop

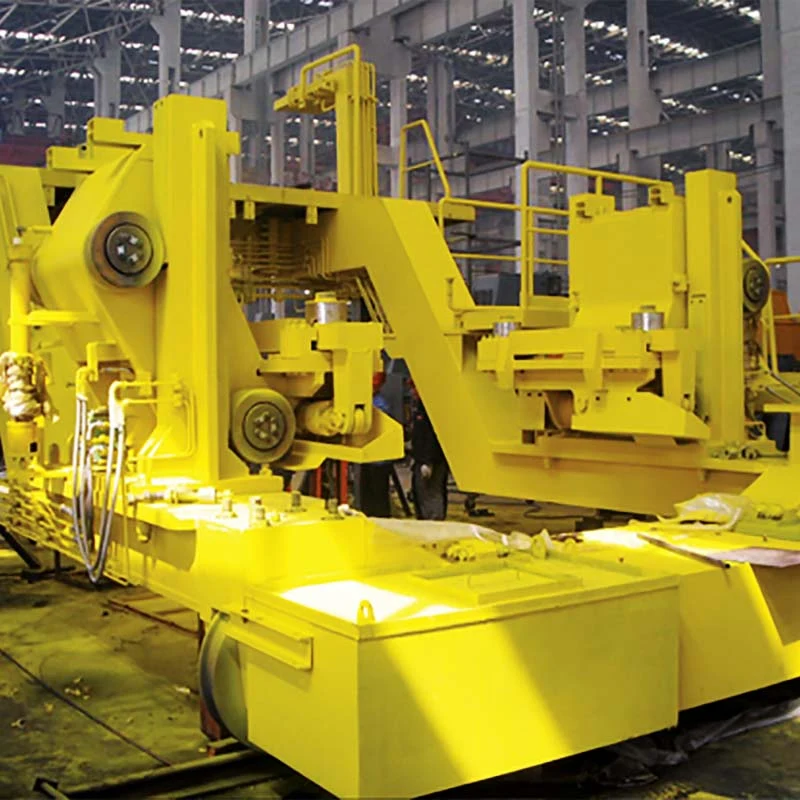

Tundish Car

1. The tundish car is required to run smoothly, reliably, and accurately.
2. It is convenient for the loading and unloading of the tundish and the observation and operation of the tundish.
3. It is required that the nozzle of the tundish and the upper mouth of the crystallizer are conveniently and accurately aligned.
4. The frame must have sufficient strength and rigidity to ensure good performance under thermal load and set up corresponding protective covers to prevent damage to related equipment caused by thermal radiation and molten steel splashing.

Description

Tundish Car

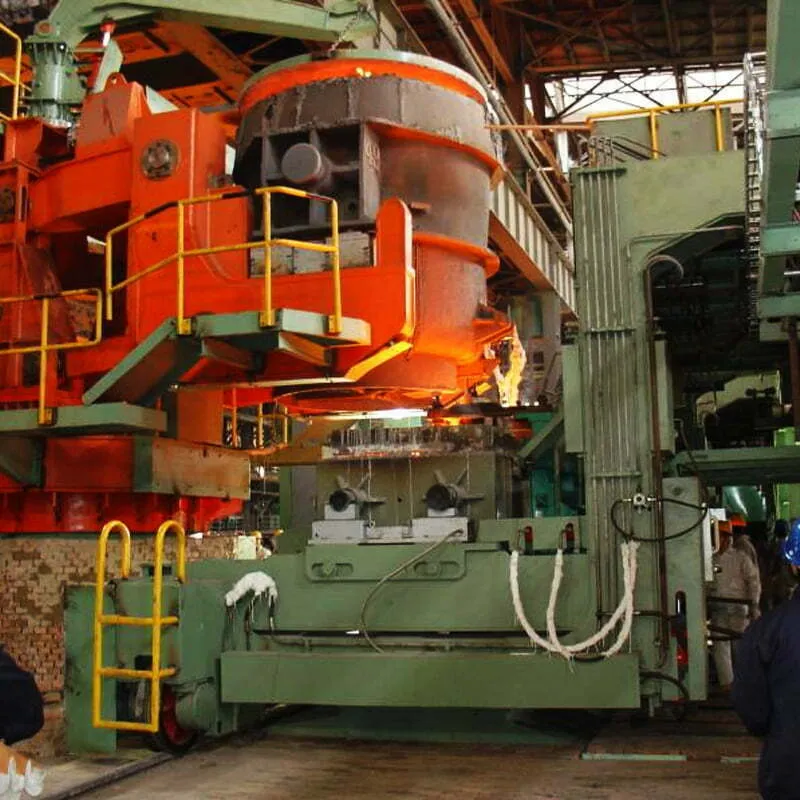

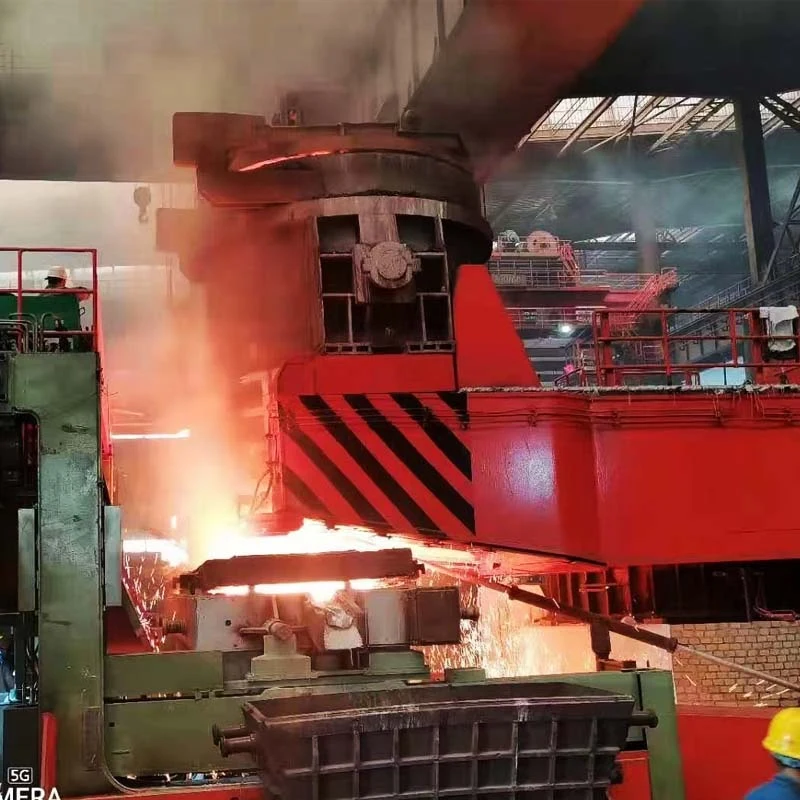

Tundish car is special vehicles that support and carry tundish. The continuous casting process requires that the tundish must be preheated (usually preheated to 1100 ℃) before pouring steel, and then can enter the steel pouring position to receive molten steel. In the process of entering the steel pouring position, in order to protect the nozzle, the tundish must be raised. After reaching the pouring position, the raised tundish must be adjusted so that the nozzle is aligned with the center of the mold. Therefore, the tundish truck must have the functions of walking, lifting, and lateral fine-tuning.

The tundish car consists of the following devices: running device, lifting device, fine-tuning device, long nozzle loading, and unloading device, weighing device, ladle operating platform, power supply towline chain, ladle sliding nozzle hydraulic station, mold slag feeding device, supply gas system, oil supply system, overflow tanker, etc.
According to the process layout and operation requirements, tundish cars are available in floor type, semi-door type, overhead type and other forms.

Tundish car is equipped with AC electrical motor with variable frequency, hydraulic tundish lifting, and tundish horizontal position centering so that protecting casting and tundish nozzle centering can be easily operated.



The Performance and Structural Description



The main function of the tundish car was carrying and transportation among the cans, in the casting process can quickly replace the intermediate tank to ensure the smooth progress of continuous casting, in addition, in the event of an accident can quickly leave the casting Tundish bit.

Tundish cars from the middle of the mainframe, walking mechanism, manually transferring the composition of the fine-tuning device. In order to facilitate the intake of tin in the middle, running organizations adopt VVVF to achieve fast, slow transmission, on the longitudinal and lateral horizontal fine-tuning of, the structure of the form structure using high and low legs.

All the energy and signal transmission media cable reel with external connections. Side of the tundish car with pouring insulation panels, to prevent heat radiation tundish in order to improve the operating conditions.



Parameter



The Main Technical Parameters

Carrying capacity: 30 tons

Forms: high and low leg structure

Tundish car walking speed: 2 ~ 17m/min

walking mechanism: 2 sets

Motor: 2 × 5.5KW

Model: YZP132M2-4

Reducer: 2;

Model: QSC20-144

The adjustment of the trip: ± 60mm



Technical Requirements for Tundish Cars

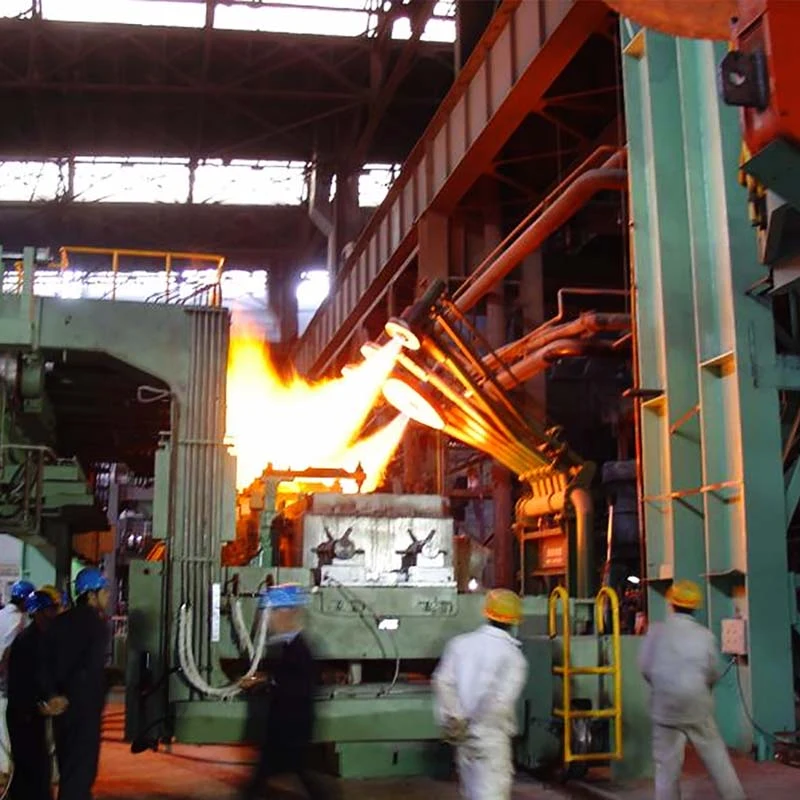

The tundish car is arranged on the pouring platform of the continuous casting machine and is used to transport the dried and baked tundish from the preparation position to the pouring position. Using the horizontal fine-tuning and lifting mechanism, the nozzle of the tundish can be accurately centered and inserted into the mold for pouring. When the pouring is over or an accident cannot be poured, the tundish car can quickly return to the ready position for tundish change or accident handling. In order to ensure continuous casting of multiple furnaces, each continuous casting mechanism is equipped with two tundish trucks, one for online casting and the other for preparations such as baking.



The Technical Requirements Are as Follows:

1. The tundish car is required to run smoothly, reliably, and accurately.

2. It is convenient for the loading and unloading of the tundish and the observation and operation of the tundish.

3. It is required that the nozzle of the tundish and the upper mouth of the crystallizer are conveniently and accurately aligned.

4. The frame must have sufficient strength and rigidity to ensure good performance under thermal load and set up corresponding protective covers to prevent damage to related equipment caused by thermal radiation and molten steel splashing.

5. When using protective pouring and automatic control, the tundish lifting and the weighing device should be set up.



Customized Continuous Caster



We can design and manufacture the continuous caster according to the user’s steelmaking capacity, billet size, steel grade, and user site conditions. It can also be matched for manufacturers who already have continuous casting equipment.



Custom Range

Arc radius of casting machine: R2.5-10m

Billet species: square billet, round billet, slab, special-shaped billet

Continuous casting billet material: low carbon steel, low carbon alloy steel

Design production capacity: first-class 100,000 tons, second-class second-class 200,000 tons, third-class third-class 300,000 tons



Service

We can provide foundation layout and layout drawings

We will send engineers to your factory to install and debug machines and provide reliable after-sales service.

Competitive price and excellent quality

Our machines are easy to operate and maintain

Less investment

Stable performance

Products can be customized according to different need

Production capacity can be adjusted according to customer requirements

Low energy consumption
